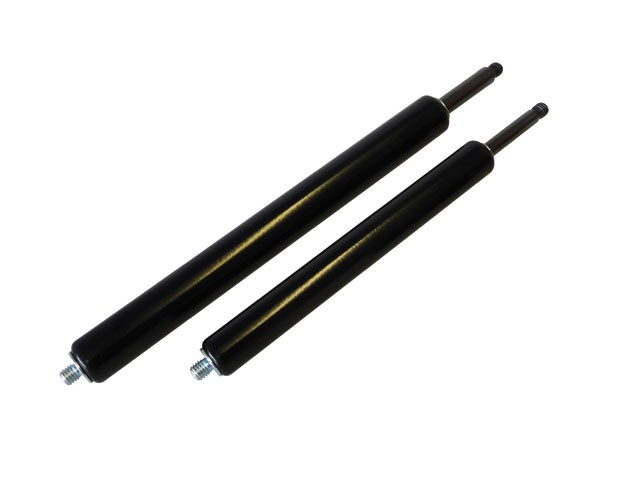

Gas Traction Springs

Gas traction springs operate the opposite way to conventional gas springs. In other words they pull rather than push. When a load is applied to the piston and pulled out the force will attempt to pull the piston back into the body. Typical gas traction spring applications include trailer doors and access ramps.

Features:

High corrosion resistance features

• Housing: powder coated
• Piston rod: ceramic coated
Minimal friction coefficient to achieve the lowest extension forces
Integrated grease chambers and sliding bearing
Low breakaway force
Can be installed in any position
Maintenance free and ready for installation
Temperature: -20°C to +80°C, optional: -45°C to +200°C
Adjustable filling force (optional)
RoHS - conform Directive 2002/95/EC

WM-GZ-19

Piston rod: Ø 6mm / Housing: Ø 19mm
Strokes: 30, 50, 100, 150, 200
Forces: 30 - 300 N

WM-GZ-28

Piston rod: Ø 10mm / Housing: Ø 28mm
Strokes: 30, 50, 100, 150, 200, 250, 300 ,350, 400, 450, 500, 550, 600, 650
Forces: 150 - 1200 N
