Pneumatically Operated Angular Gripper WGK | D-Celtech

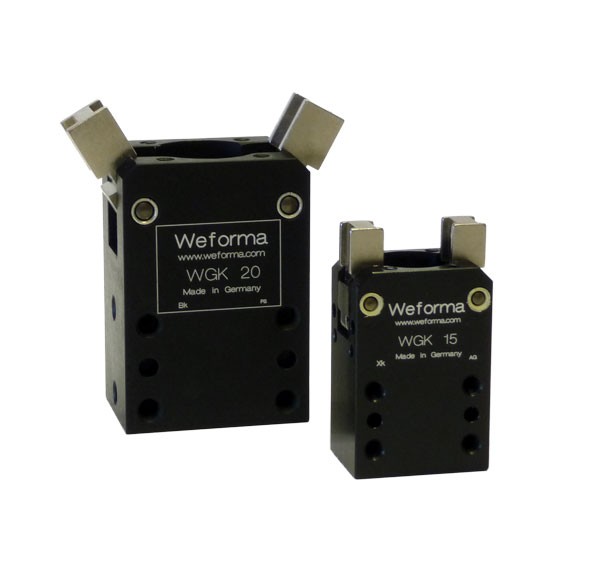

Pneumatic Angular Gripper WGK

WGK 15

WGK 20

Stroke

2 x 90°

2 x 90°

Dual stroke air volume (cm3)

3,2

7,0

Clamping force at 6 bar (Nm)

0,11

0,22

Working pressure (bar)

4 - 10

4 - 10

Reproducibility (mm)

±0,02

±0,02

Weight (g)

80

180

Working temperature (°C)

5 - 60

5 - 60
