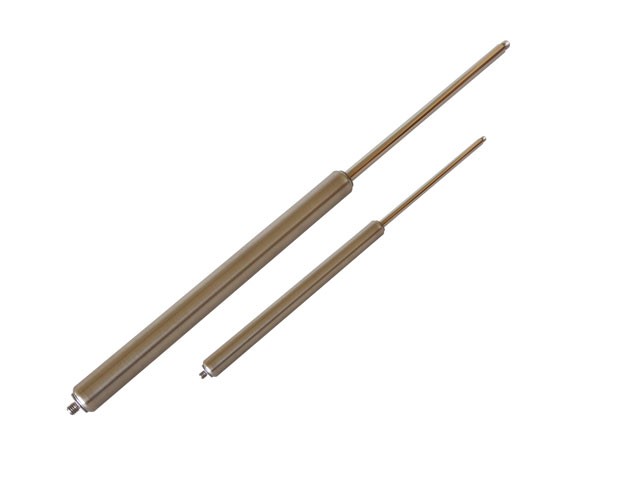

316 Stainless Steel gas springs are ideally suited for harsh environment applications such as those found in the food industry, marine use, chemical industry. They offer high corrosion resistance in todays demanding applications.
Piston rod: Ø 6mm / Housing: Ø 15mm
Strokes: 20, 40, 50, 60, 80, 100, 120, 150
Force: 40 - 400 N
Piston rod: Ø 8mm / Housing: Ø 19mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 700 N
Piston rod: Ø 10mm / Housing: Ø 19mm
Strokes: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700
Force: 100 - 1200 N
Piston rod: Ø 14mm / Housing: Ø 28mm
Strokes: 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650
Force: 150 - 2500 N
Piston rod: Ø 20mm / Housing: Ø 40mm
Strokes: 100, 150, 200, 300, 400, 500, 600
Force: 500 - 5000 N
Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700mm
Force: 80 - 1300 N
